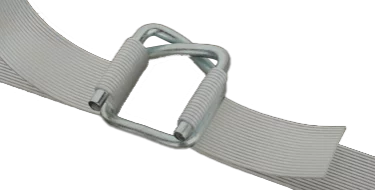

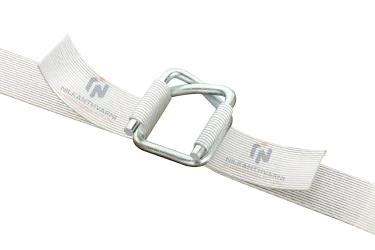

The buckle is used to fix the pallet and the loads and to connect the two ends of the strap during the application of the strap. Buckles are also referred as wire buckles.
The quality of the buckles are the most important factor affecting the joint strength of the strap. The quality of the buckles depends on the diameter of the wire, the quality of the wire used, the quality of the surface coating and the form of the buckle.
In the early 70’s polyester yarn became available. It started to take the place of rayon because of its higher strength and weather-resistant properties. This resulted in the switch to industrial high tenacity polyester filament yarn.
Our buckles are mainly used with Polyester Composite Cord Strapping and Woven Lashing Belt.
We are producing buckles in two different surface qualities: Phosphate coated and Zinc Coated GI Buckles.
| PRODUCT CODE | WIDTH (MM) | THICKNESS (+- 0.05 MM) | PIECE PER BOX | BOX DIMENSION (mm) |
|---|---|---|---|---|
| NI - WB 13 | 13 | 3.20 | 200 | 320 X 290 X 203 |
| NI - WB 16 | 16 | 3.45 | 1500 | 320 X 290 X 203 |
| NI - WB 19 | 19 | 3.95 | 1000 | 320 X 290 X 203 |
| NI - WB 25 | 25 | 4.95 | 500 | 320 X 290 X 203 |
| NI - WB 32 | 32 | 6.95 | 250 | 320 X 290 X 203 |
| NI - WB 32M | 32 | 6.50 | 250 | 320 X 290 X 203 |
| NI - WB 40 | 40 | 7/8 | 150 | 320 X 290 X 203 |
