NILKANTHVARNI INTERNATIONAL PVT. LTD. Our composite cord strap s tested and recommended for well established companies in INDIA and across the global market. Our product s DNV - GL approved. Complete Quality control and in house testing Facilities, we provide most Qualitative Product. Our cord strap available in break strength ranging from 1200 lbs to 3500 lbs with system strength 2040 lbs. to 5950 lbs. Each size designed to replace a specific steel band providing equal strength while delivering with saving, safety and convinces.

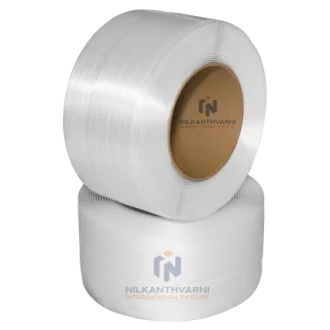

Polyester composite cord strap Is manufactured from polyester fibers, yielding one of the strongest non metallic strapping materials available. It can be applied with hand tools by using buckles or it can be tied.
Due to its superior properties, Composite cord strap is preferred for heavy loads and loads carried under difficult condition.
| PRODUCT CODE | WIDTH (MM) (+- 0.20 MM) | LINEAR BREAK STRENGTH (KGF)(+- 5 %) | SYSTEMSTRENGTH (KGF) (+- 5 %) | COIL LENGTH (meters) | COIL DIAMETER (meters) | BOX DIMENSION (mm) | COILS PER PALLET |
|---|---|---|---|---|---|---|---|
| STANDARD COMPOSITE CORD STRAP | |||||||
| NI - CS 13 | 13 | 200 | 370 | 1100 | 200 | 350 X 350 X 400 | 90 |
| NI - CS 16 | 16 | 300 | 540 | 850 | 200 | 370 X 370 X 400 | 90 |
| NI - CS 19 | 19 | 360 | 620 | 600 | 200 | 370 X 370 X 400 | 90 |
| NI - CS 25 | 25 | 730 | 1350 | 500 | 200 | 380 X 380 X 400 | 90 |
| NI - CS 32 | 32 | 1250 | 2300 | 300 | 200 | 380 X 380 X 400 | 90 |
| HEAVY-DUTY COMPOSITE CORD STRAP | |||||||
| NI - CS 19 | 19 | 430 | 790 | 600 | 200 | 370 X 370 X 400 | 90 |
| NI - CS 25 | 25 | 900 | 1660 | 500 | 200 | 380 X 380 X 400 | 90 |
| NI - CS 32 | 32 | 1450 | 2680 | 300 | 200 | 380 X 380 X 400 | 90 |
| TWISTED COMPOSITE CORD STRAP | |||||||
| NI - CS 16 | 16 | 300 | 550 | 600 | 200 | 370 X 370 X 400 | 90 |
| NI - CS 19 | 19 | 360 | 620 | 450 | 200 | 370 X 370 X 400 | 90 |
| NI - CS 25 | 25 | 950 | 1760 | 300 | 200 | 380 X 380 X 400 | 90 |
| NI - CS 32 | 32 | 1250 | 2300 | 300 | 200 | 380 X 380 X 400 | 90 |
| NI - CS 32 | 32 | 1400 | 2590 | 300 | 200 | 380 X 380 X 400 | 90 |
